Wireless Companion of HiFi Headset-Feiao UTWS5 Real Wireless Bluetooth Ear Hear Hung

Feiao has produced a lot of earphone products in recent years, but it focuses more on wired HiFi earphones. In TWS real wireless earphones, Feiao has only tried water on entry-level products. But on the other hand, Feiao did not stop thinking about how to help listeners wirelessly turn their wired HiFi headphones. After the introduction of real wireless Bluetooth earrings in 2019 and 2020, Feiao brought the same series of new UTWS5 in 2021. Compared with previous products, the upgrade of UTWS5 can be said to be all-round.

Specifications

Bluetooth Chip: Qualcomm QCC5141

DAC chip: AK4332

encoding format: SBC, AAC, aptX, aptX Adaptive

Bluetooth Version: 5.2

Endurance:>30 hours (the headphone can be charged 3 to 4 times for 8 hours at a time)

Standby time: 200h

Output power: 33mW(32 Ω) and 53mW(16 Ω)

Bottom noise:<4 μV

signal-to-noise ratio: 109dB(A)

: IPX4

charging interface: USB-C, wireless charging

Headset Interface: Expanded MMCX, 0.78mm (later introduced)

Weight of single earring: about 8g (excluding earphones)

reference price: 699 yuan

UTWS5 continues the shape of UTWS3 in appearance, but in order to facilitate the distinction, some details have been changed. The "FiiO" Logo of the charging box has been changed from ordinary silk screen printing to "nickel dispensing", and the visual effect is more three-dimensional and eye-catching. The Logo color on the ear hook has also changed from white to gold. UTWS5 still provides versions of MMCX and 0.78mm interfaces, the latter will have a little time to market. The joint part of the two earrings also has the "red, right, blue and left" logo commonly used by Feiao, which makes it easier to find the corresponding unit when connected to your own earphones.

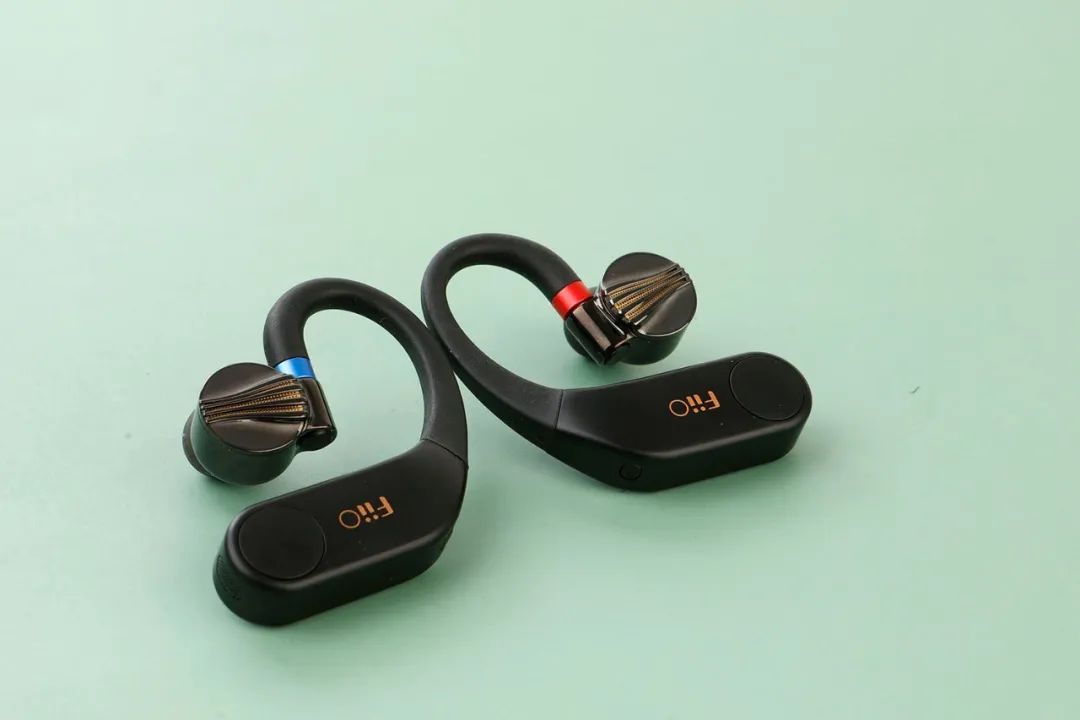

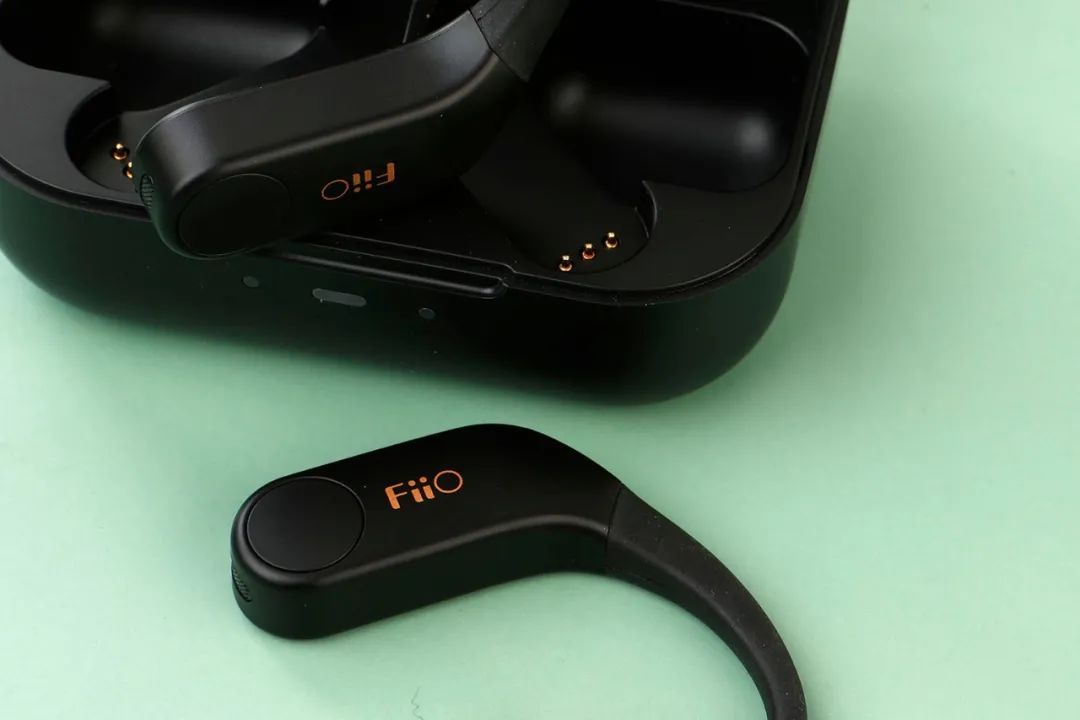

▲ The Logo color on the UTWS5 ear hook changes from UTWS3 white to gold

Compared with the fine-tuning in appearance, UTWS5 has undergone tremendous changes. The most important upgrade comes from two places, one is the upgrade of Bluetooth chip to Qualcomm QCC5141, and the other is the addition of independent DAC chip AK4332. The QCC5141 is based on the latest Bluetooth 5.2 specification, and more importantly, it supports Qualcomm Snapdragon Sound, which is Xiaolong listening technology, which makes UTWS5 support aptX Adaptive wireless coding technology and can play 96kHz/24bit high definition audio. AptX Adaptive we have specifically introduced before, it combines the advantages of aptX HD with high bit rate and high sound quality and aptX Lossless with low bit rate and low sound quality, and can adaptively adjust the sound quality and delay after the device is connected.

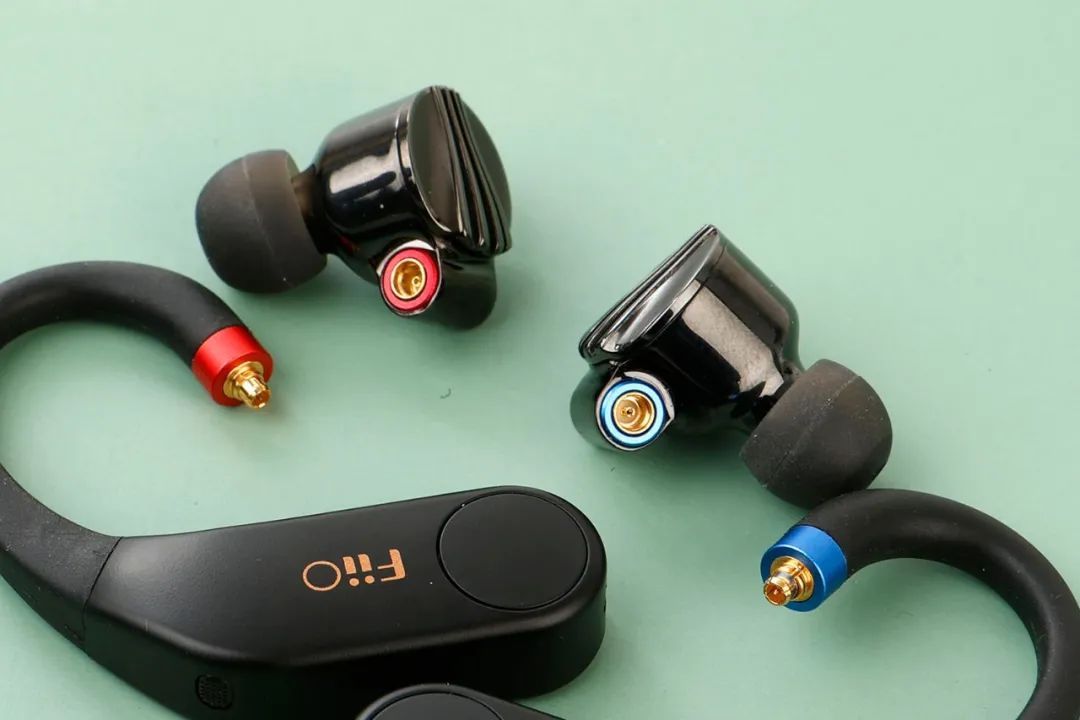

▲ UTWS5 also uses the common "left blue and right red" logo on Feiao headphones

QCC5141 also brings TWS Mirroring (true wireless mirroring) technology, which enables the two earrings of UTWS5 to be flexibly switched when in use: for example, one of the earrings has low power, or the user puts the main ear into the charging box, or in the case of poor radio frequency connection, the technology can ensure that this switching is automatic and seamless, and the user cannot feel it, but will have a stable and reliable wireless sound experience.

UTWS5 is also the world's first independent (external) DAC Bluetooth earhook. Other similar products use integrated chips. It can be said that Feiao uses the player architecture on an earhook product. The external DAC needs independent power supply, so UTWS5 is better in related performance: compared with the original Bluetooth integrated chip, its distortion is increased from -85.4dB to-97dB, and the distortion of sound is reduced by about 4 times. Signal-to-noise ratio increased from 100dBA to 109dBA, an increase of about 3 times; the dynamic range is increased from 100dB to 107dB, which is more than 2 times higher. The output power is greatly improved, especially the power under 16 Ω impedance is directly increased from 30mW to 53mW, an increase of about 77%. It can be said that Bluetooth earrings that can provide such surging power are quite rare in the current market, and are more conducive to the potential of HiFi earphones.

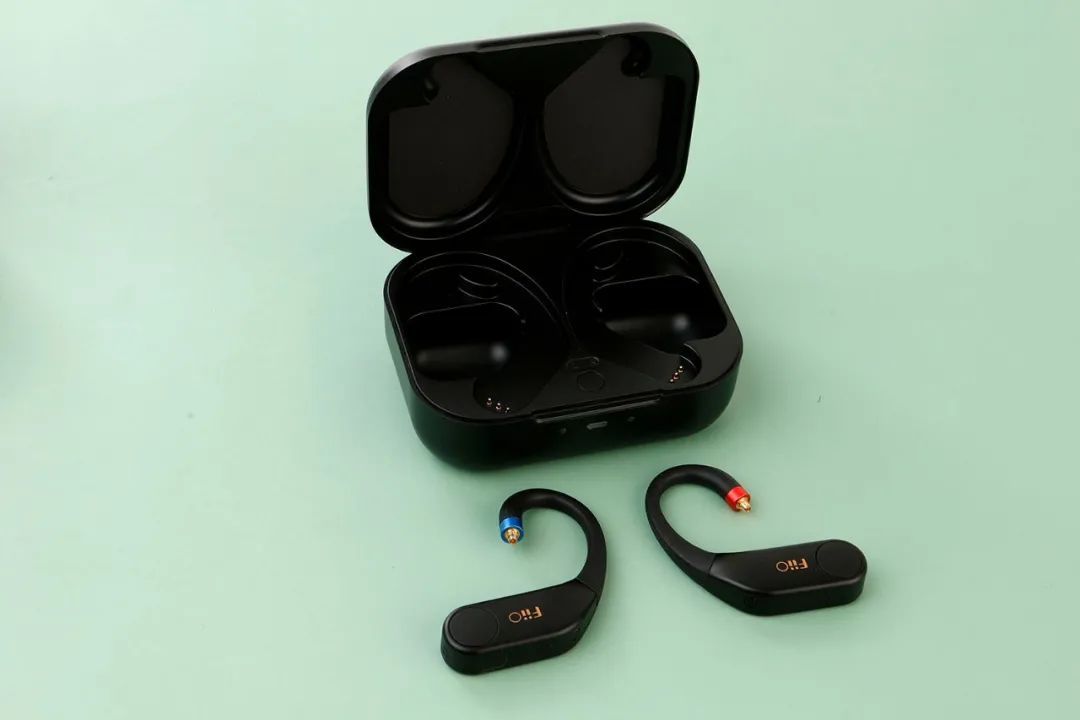

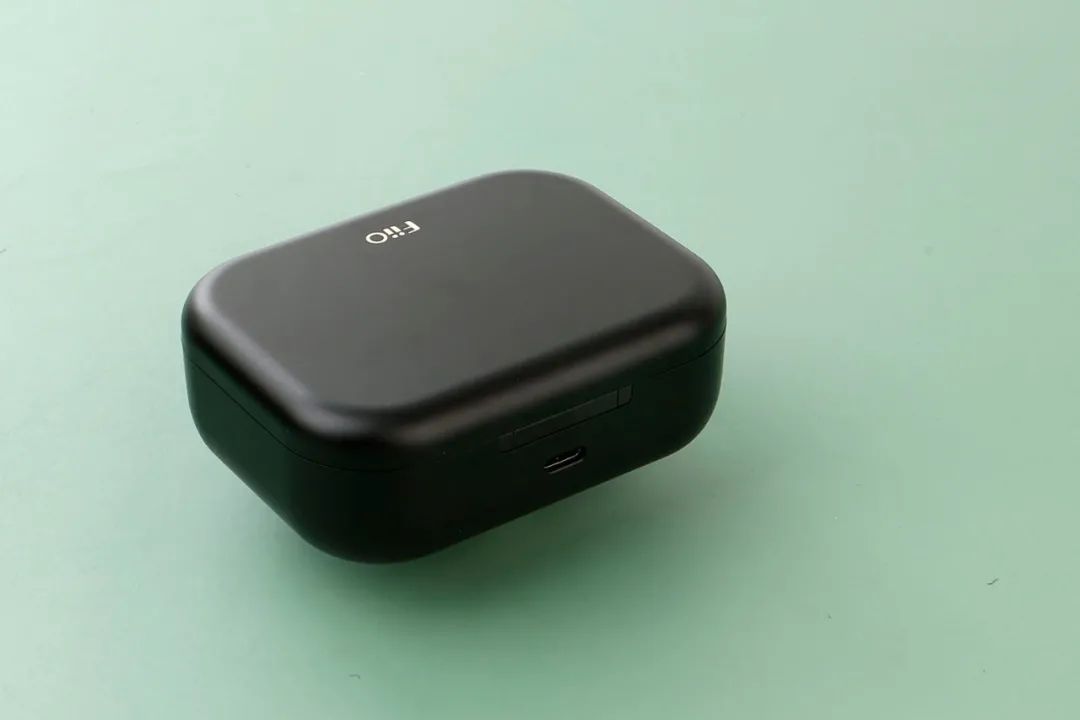

▲ UTWS5 charging box is relatively large, which can be charged by USB-C wire and also supports wireless charging.

UTWS5 is still equipped with a larger charging box with a large aluminum alloy cavity, which can accommodate headphones of different sizes and UTWS5 at the same time. The endurance of UTWS5 has been increased to 8 hours, and the charging box can charge it 3-4 times, with an overall endurance of more than 30 hours. In addition, in addition to charging through the USB-C interface, the charging box also adds a wireless charging method. There is a charging coil at the bottom of the charging box, which can be matched with a wireless charging base to obtain a more convenient charging experience.

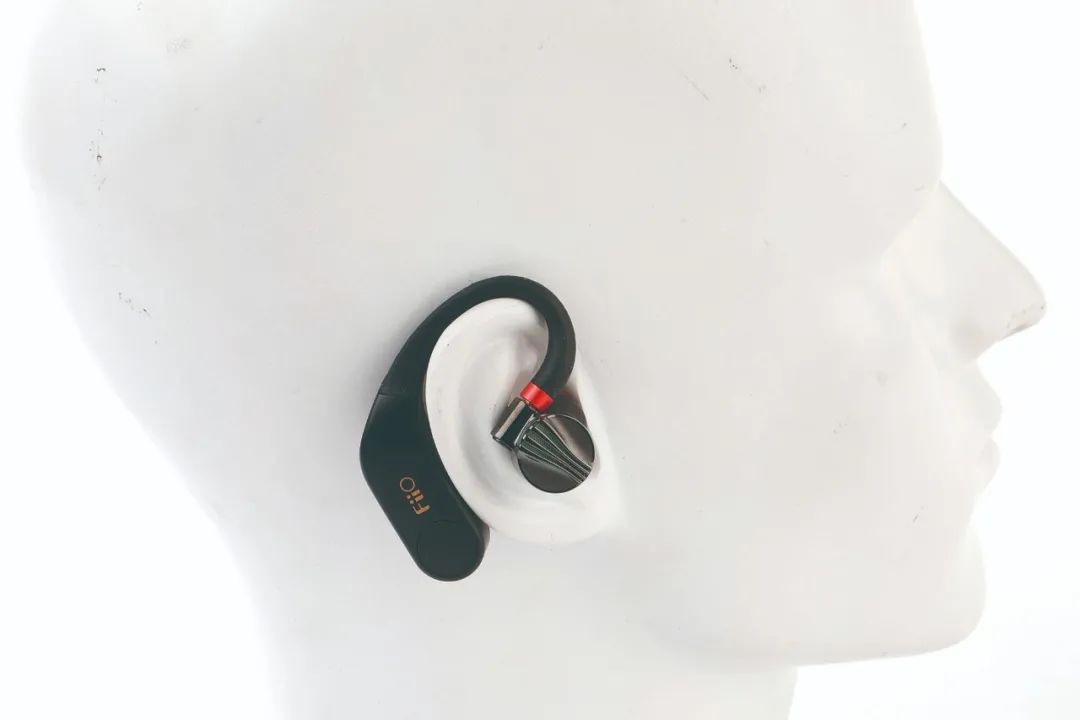

▲ UTWS5 has good compliance and comfort when worn, and is still very stable.

The wearing stability of TWS headphones is one of the key factors that affect the use experience. I use FD7 to connect with UTWS5 for wearing experience. First of all, its comfort is good, the light nano coating on the surface has a delicate touch, and the memory metal in the earring has good flexibility. After wearing the earphone, it can also easily adjust the earring to make it more compliant. The presence of the ear hook is not stronger than that of the wired earphone when worn around the ear, and its weight is evenly distributed, which will not make people feel that there will be obvious pressure somewhere in the ear.

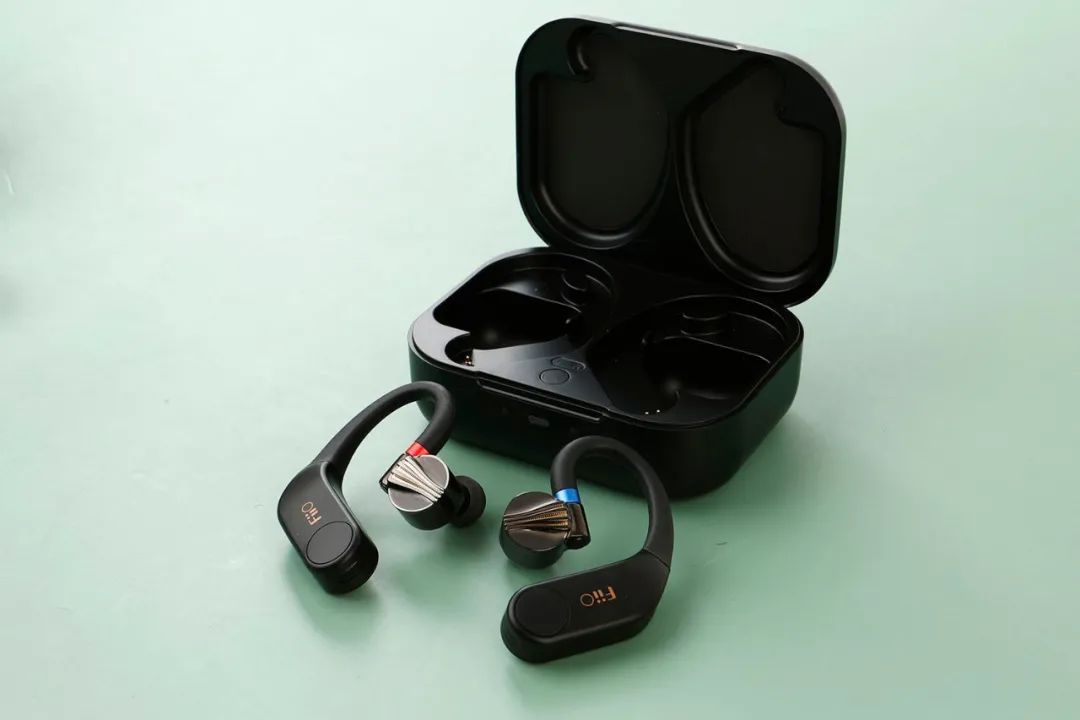

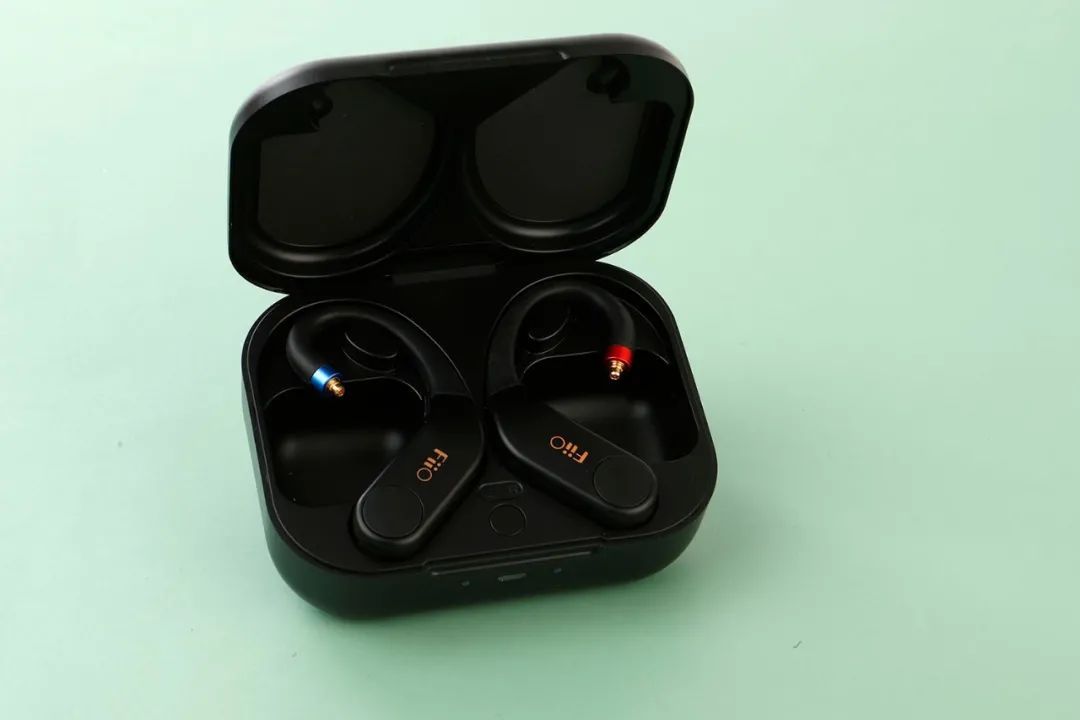

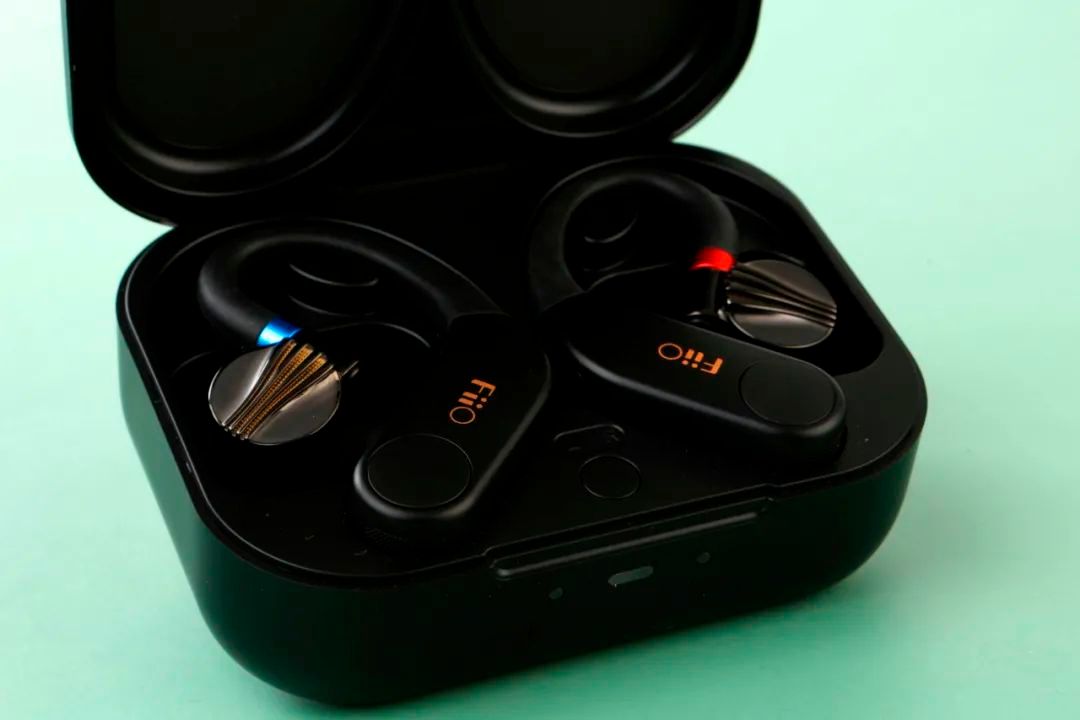

▲ The charging box has a large internal space, which can be adapted to headphones of different sizes and stored at the same time as UTWS5.

Secondly, its wearing stability is very good. I specially throw my head up and down left and right earphones can also stay in my ears stably without loosening. In terms of stability performance alone, the ear-mounted design surpasses most TWS earphones. Of course, in terms of weight, the combination of UTWS5 + FD7 is still heavier than TWS headphones, but I think it is acceptable. Going out of the street and commuting will not bring obvious burden. I also try to wear this combination when jogging, the overall stability is still excellent, and people will not have the urge to adjust it. UTWS5 has IPX4 standard waterproof design, so it is no problem to cope with sweat during sports. However, considering that the headphones matched with UTWS5 may not have waterproof effect, and most of the headphones matched with UTWS5 are HiFi headphones, I guess listeners are still reluctant to use it during exercise.

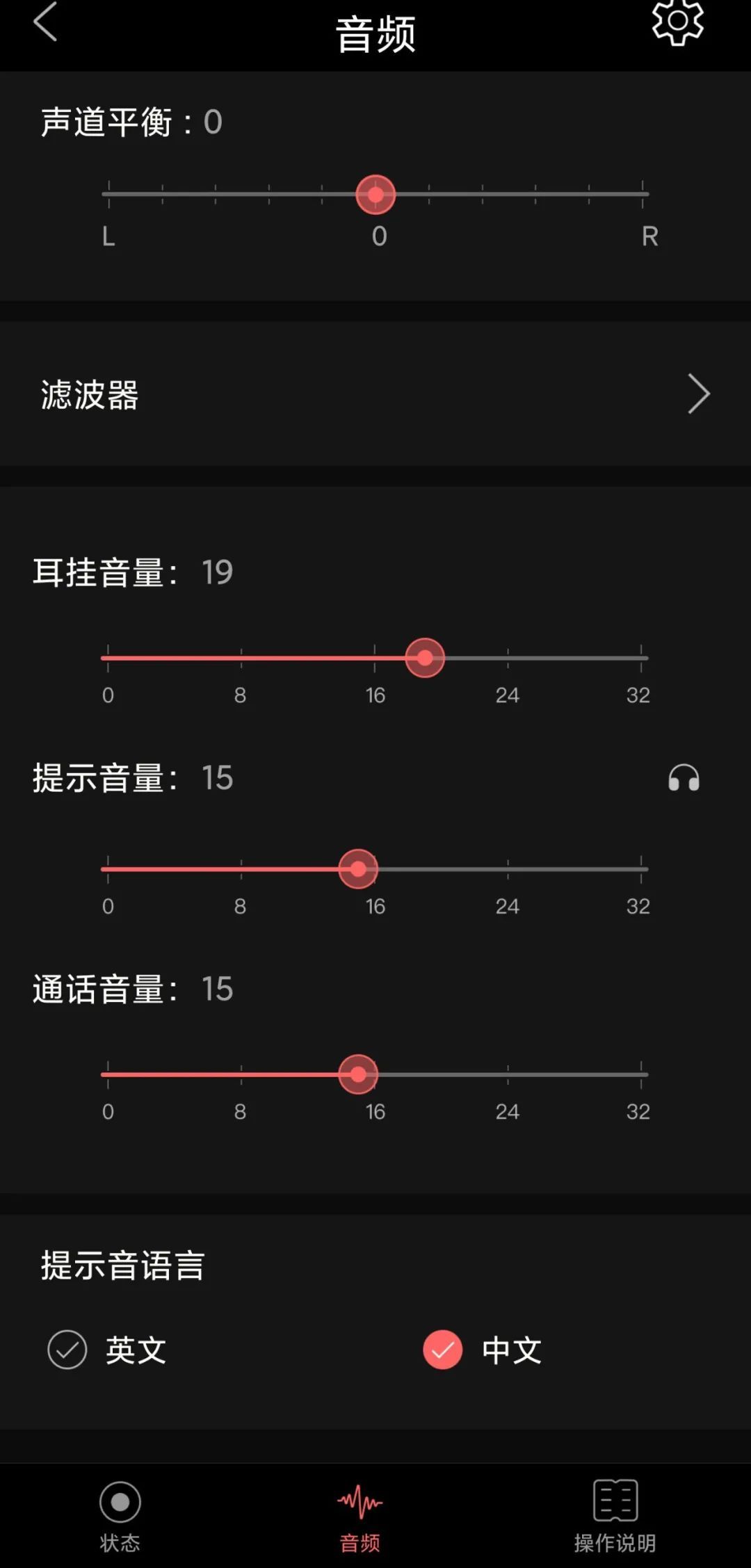

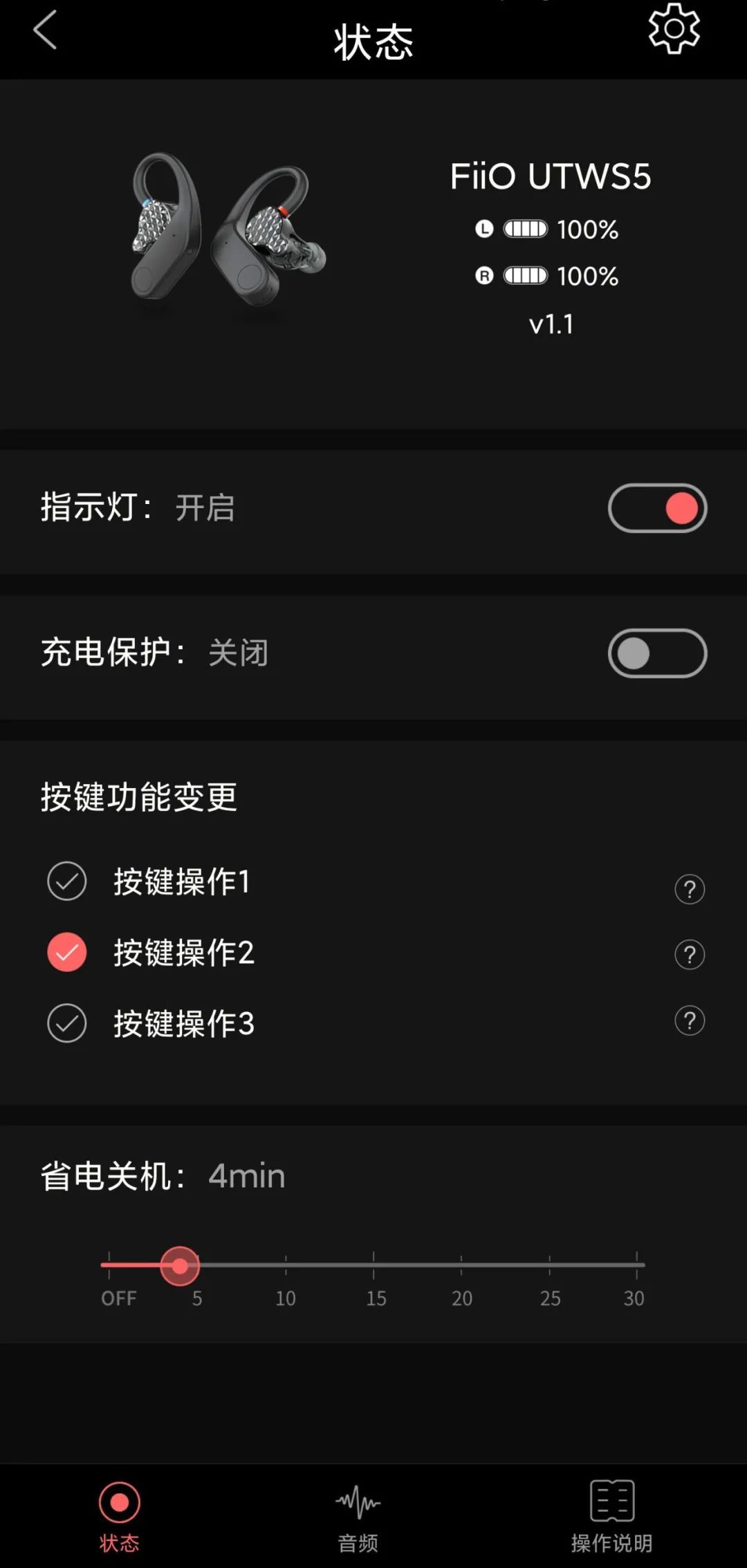

users can make various settings and firmware upgrades to UTWS5 on their mobile phones through FiiO Control or Feiao Music App. Among them, the audio-related options include the individual adjustment of ear hook volume, prompt volume and call volume, each with 32 levels, and the adjustment of ear hook volume adjusted by App and mobile phone volume are independent, which means that users can control the volume more finely. In addition, in App, users can also change the key function of the ear hook. It provides three groups of key function combinations, and users can choose the group that best meets their adaptation habits.

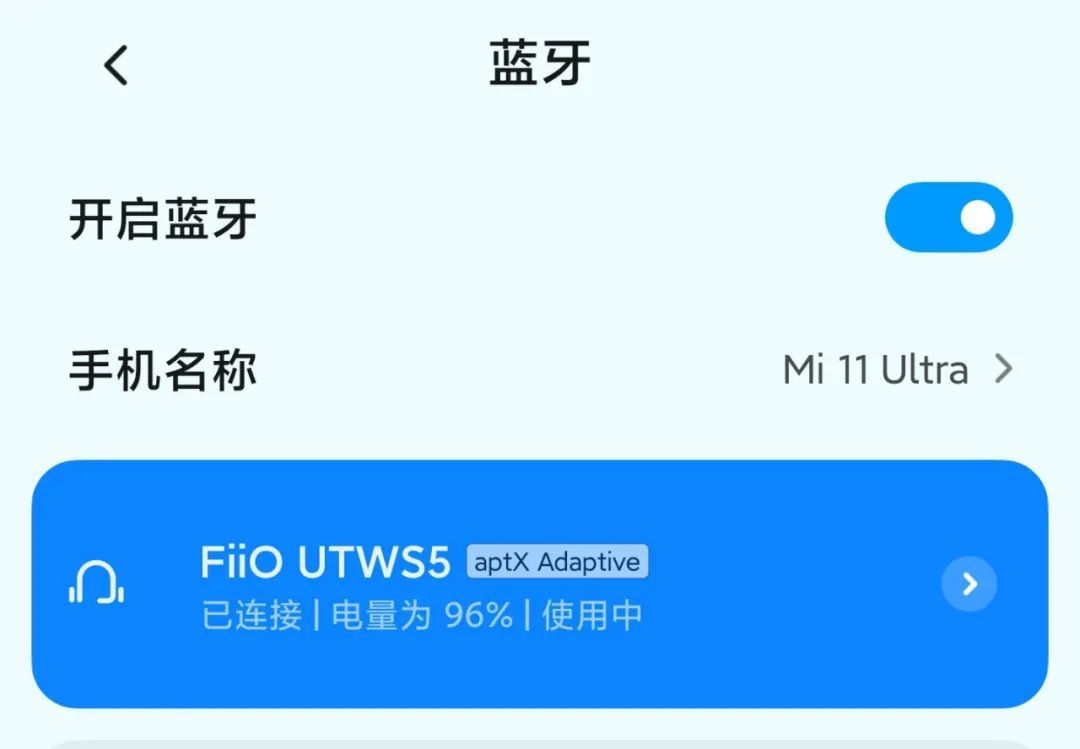

▲ UTWS5 is matched with Xiaomi 11 Ultra, which supports aptX Adaptive. the words "aptX Adaptive" can be seen in the bluetooth connection interface.

I used UTWS5 with FD7 and found Xiaomi 11 Ultra, which supports aptX Adaptive, to connect it via Bluetooth. In the Bluetooth interface of the mobile phone, you can see that UTWS5 will follow the words "aptX Adaptive". If you connect to UTWS5 with a mobile phone that does not support aptX Adaptive, it will work under aptX by default.

FD7 has relatively high impedance in Feiao's in-ear earplugs, but UTWS5 drives it easily. FD7's sound field performance, which left a deep impression on me during the previous audition, can be better displayed when matched with UTWS5. Although the vastness of the space converges slightly, the shape is still well maintained, the sense of hierarchy is clear, and the positioning is accurate. In terms of sound style, UTWS5 will not bring extra "seasoning" to FD7, and the original sound characteristics of headphones can be better presented. In the middle and high frequency parts of FD7, when paired with UTWS5, its vocal moisture and reducibility are good, full and vivid, and the suppression of dental sounds remains at a high level. High frequency has a relaxed and clean sense of hearing, and its extensibility is also maintained at a good level. Although the filling degree of details is slightly discounted, it does not affect the expression of sound charm. The low frequency maintains good elasticity and a certain depth of diving. The sense of quantity is not large, but it is enough to set off the music atmosphere.

In addition, I also watched videos and news programs and played two "the glory of the king". Even if you pay special attention to the anchor's mouth in news programs, UTWS5 can ensure that the sound and picture are consistent. In "Peace Elite", I also don't feel that the game sound effects will be delayed compared to the screen. UTWS5 does a good job in the delay and stability of wireless transmission.

Qualcomm's flagship Bluetooth chip, independent DAC…… Feiao UTWS5's all-round upgrade enables it to better exert the energy of wired HiFi headphones. At the same time, its appearance greatly expands the application scenario of interchangeable HiFi headphones. Users no longer need to do multiple-choice questions between convenience and sound quality. Whether in sports, commuting to and from get off work, or at home, UTWS5 allows users to enjoy high-quality music unfettered. However, its low delay performance in wireless transmission can also be used as a good choice for users when watching videos and playing games.
