900mW+900mW desktop-level power | ESS 8-channel DAC ES9027PRO

6 TI high-precision op-amps | XMOS 16-core XU316

10-band high-precision PEQ | Fully carbon fiber body

1.99-inch color display | Included magnetic protective leather case

*Pictures are for reference only. The actual product may vary.

Portable High-Res Lossless Music Player

High Specs

New Chapter

All-new FIIO QX series

Writing a new chapter on high-performance audio dongles

FIIO QX13

Brings together over a decade of FIIO’s technical expertise

Combines the Q series of portable amps with magnetic/attachable features

Creating a high-end, fully integrated ecosystem audio dongle

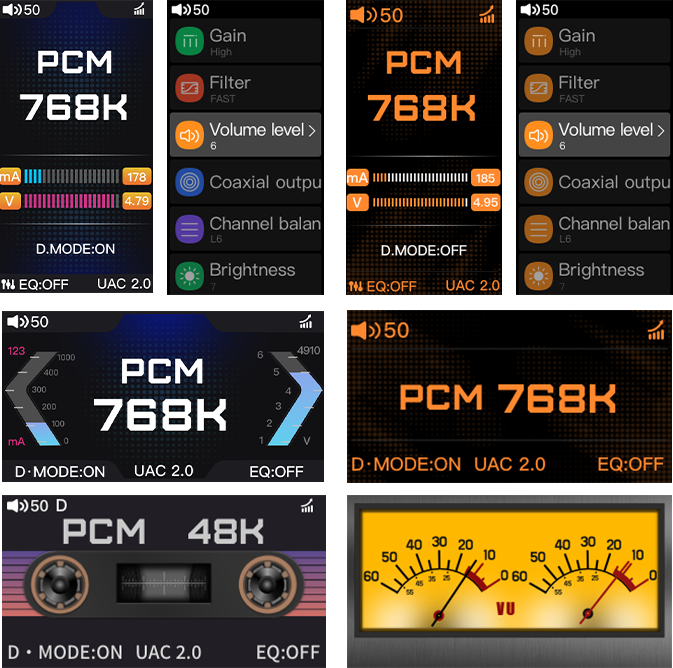

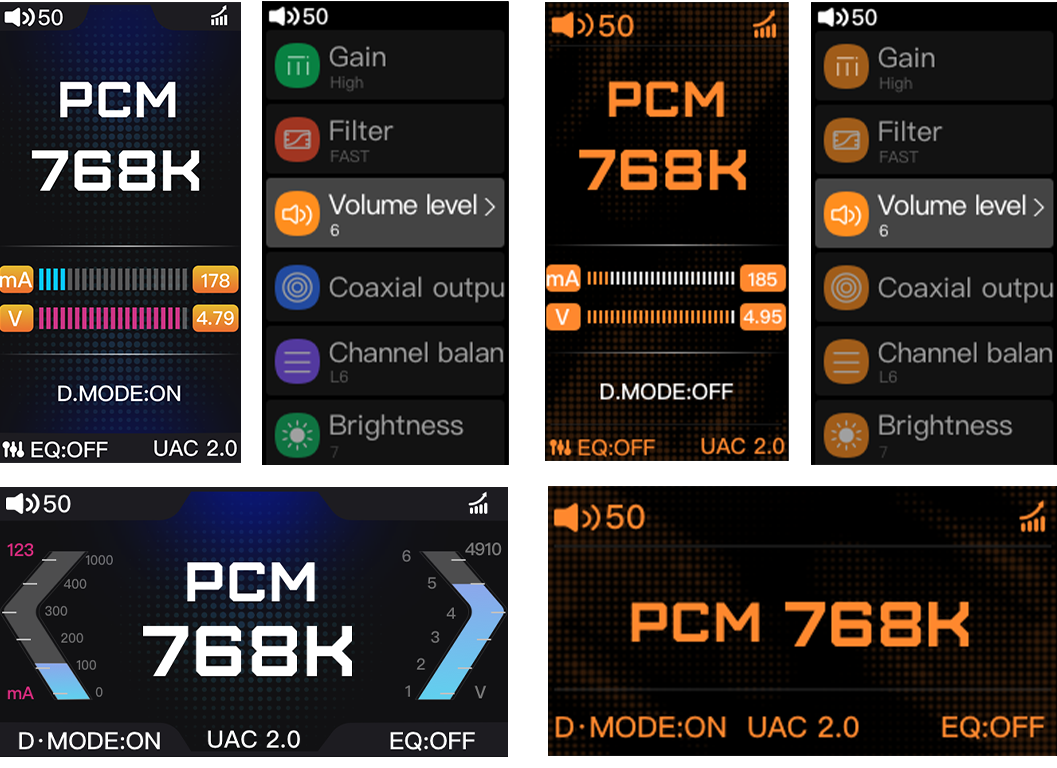

Extra large color display

A fresh perspective

The QX13 features an extra-large color display outfitted with Corning third-gen high-strength glass for greater durability and scratch resistance, rare among audio dongles. Multiple newly developed personalized UI themes powered by a 32-bit processor ensure that the user experience is unrivaled among audio dongles, making it just right for you whether in portrait or landscape mode.

two DAC chips ES9068AS handle the left and right channels respectively, and the fine "core" polishes the quality and sound quality. Listen to your favorite song list and revel in the beautiful song in an instant.

high-performance dual-core, sound into your heart

The chip features a fully differential audio architecture design with 8 channels set up in parallel, and is paired with a pair of ultra-low-noise ES9312 regulators for precise output matching on each audio channel. Audio signals are accurately restored thanks to this pair of chips’ optimized power efficiency and effectiveness in reducing clock jitter.



Desktop-grade DAC

ESS SABRE PRO

Flagship ES9027PRO

*The ESS SABRE PRO series of DAC chips are mainly used in high-end audio systems and professional audio gear. The first generation of products included the flagship ES9038PRO, and the second generation of products included the new flagship ES9039PRO and EES9027PRO.

6 high-end TI op-amps

Powerful and stable output

with high efficiency

The QX13 uses four wafer-level precision-integrated INA1620 chips, with a specially designed internal layout to significantly reduce crosstalk – for no interference between channels even under extreme conditions. Additionally, two low-noise, low-distortion OPA1692 chips are employed to ensure excellent dynamics under various load conditions.

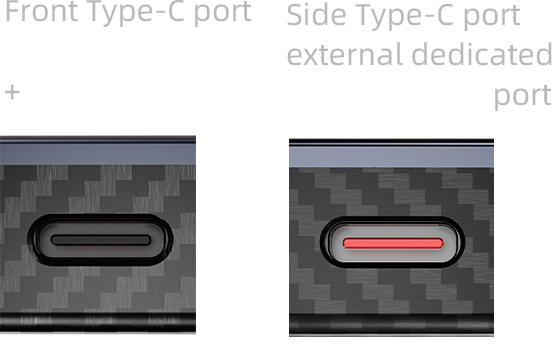

Thanks to its new configuration, optimized audio circuit, and more efficient heat dissipation, the QX13 in desktop mode can deliver power comparable to full-size headphone amplifiers while also significantly reducing power consumption. It also features a high- precision power meter, capable of accurately assessing the power supply capabilities of different USB sources and intelligently adjusting accordingly the headphone amplifier’s gain and output power.



Patent no:ZL202321946664.8

Patented Desktop Mode

Adaptive regulation

Balancing performance

and power consumption

Digital and analog separation Multi-layer shielding

The digital and analog boards are separated and equipped with a shielding cover for isolation, ensuring precise and dynamic signal processing. This design also effectively absorbs and dissipates heat, enabling effective thermal management and ensuring the QX13 delivers sustained high-power output.

The QX13 has pro-grade USB Audio quality, with high performance, low latency, and support of up to 768Khz/32bit PCM and DSD512 native decoding. Dual ultra-low phase noise, low temperature drift femtosecond crystal oscillators ensure that audio of various sampling rates is correctly handled for the best sound quality. The XMOS XU316 also allows for a 10-band lossless PEQ, which can be tuned either via the Android FiiO Control app or through the web, making it easy to dial in your sound.

XMOS 16-core XU316

Uniquely brilliant

*Web PEQ location: Top bar of FIIO website – Support – Web-based PEQ settings

*When PEQ is turned on, the max sampling rate supported PEQ adjustment is PCM 192kHz/24bit

Specially-designed

audio architecture

Rivaling pro DAC and headphone amplifiers



The QX13 condenses audio architecture design found in fairly high-end DAC and headphone amplifiers into a small dongle. The QX13 with its design achieves high-precision conversion of audio signals to the DAC thanks to dual crystal oscillators. The audio signal goes through multiple stages of analog processing—including LPF voltage amplification, BUF current boosting, and parallel-enhanced current expansion—delivering sound quality comparable to that of professional DAC and headphone amplifiers.

Full ecosystem of accessories The essence of portable HiFi

The included magnetic leather case achieves perfect alignment for an iPhone. For Android devices, the included magnetic ring can be used to achieve the same result.

Dual curved magnets embedded in the case back

The included magnetic leather case achieves perfect alignment for an iPhone. For Android devices, the included magnetic ring can be used to achieve the same result.

Comes standard with an 8-strand decoding cable – 6 strands of monocrystalline copper + 2 strands of silver-plated monocrystalline copper, giving pure high-fidelity sound.

Want everything

Got everything

3.5mm output supports SPDIF out

60-step and 120-step volume adjustment scales

Supports Android FIIO Control APP/Web

Temperature regulation, DC output

regulation, max volume limit

UAC1.0 mode supports Switch/PS5 and other devices

Color: Black (carbon fiber)/Titanium (aluminum alloy)

Weight: About 33g (carbon fiber)/About 39g (aluminum alloy)

Dimensions: About 64.2x30.7x13mm

USB chip: XMOS XU316

DAC: ES9027SPRO

Op-amp: OPA1692*2

Headphone amplifier: TI INA1620*4

Sampling rate support: Asynchronous 768kHz/32bit, DSD512 (Native), MQA full decoding USB DAC driver-free mode: Supported

Display: 1.99 inch IPS, Corning third-gen high-strength glass

Headphone output: Single-ended 3.5mm + balanced 4.4mm

Output power1: L+R≥310mW+310mW (32Ω/THD+N<1%/SE/desktop mode)

Output power 2: L+R≥900mW+900mW (32Ω/THD+N<1%/BAL/desktop mode)

Output power 3: L+R≥250mW+250mW (32Ω/THD+N<1%/SE/non-desktop mode)

Output power 4: L+R≥570mW+570mW (32Ω/THD+N<1%/BAL/non-desktop mode)

Output power 5: L+R≥35mW+35mW (300Ω/THD+N<1%/SE/desktop mode)

Output power 6: L+R≥115mW+115mW (300Ω/THD+N<1%/BAL/desktop mode)

SNR: ≥124dB (A-weighted)

Noise floor: PO<2μV (A-weighted); BAL<3.4μV( A-weighted)

THD+N: <0.0004% (1kHz/-2dB@32Ω)

Basic specifications

Pushing the boundaries of what can be done – the QX13 is made with up to 21 layers of stacked carbon fiber for a lightweight yet durable build. The carbon fiber also allows it to be resistant to interference and heat, while featuring a unique texture and a premium feel.

Fully carbon fiber body

Always pushing boundaries

*Carbon fiber is widely used in high-end products such as aviation, sports cars, and other items. It is light in weight, high in strength and stiffness, and resistant to corrosion. It has excellent properties and feels luxurious.

*To improve grip comfort and achieve a better visual effect, the surface of the carbon fiber version was processed with ultra-transparent UV varnish treatment. Please use the QX13 with the leather case to minimize scratches caused by friction with hard objects.

*There is an alternate aluminum alloy model with a laser-engraved back panel, with its simply elegant yet advanced look.

① ------------------------------------------------------QX13*1

② --------------------------------------------Leather case*1

③ -----------------------Type-C to Type-C data cable*1

④ ----------------Type-C silicone plug*2 (pre-installed)

⑤ ----------------------------------Screen protector film*1

⑥ ------------------Ring-shaped magnetic conductor*1

⑦ ---------------------------------------Quick Start guide*1

⑧--------------------------------------------Warranty card*1

Packing List
