3. K15 accessory list, power supply instructions

Packing list

K15*1, AC power cord*1, USB data cable*2, Headphone plug adapter*1, Remote control*1, Fuse*1, XLR4 decorative plug*1, Battery*2 (only for China, English, Japan regions), Quick start guide*1, Warranty card*1

[K15 Power Supply Specifications] The K15 utilizes a switching mode power supply with a universal AC line standard interface (unlike the K17, the K15 does not have voltage level selection)

[Fuse Parameters]

250V/500mAH 5.2x20mm

[Function of the grounding post in the rear panel]

1.When K15 is paired with other device which cannot be connected to the power ground, it can be connected through the grounding post.

2.You can connect the metal shell of K15 directly to the earth through the grounding post, which can enhance the anti-static capability of the equipment.

3.Improve the ground loop, potentially to improve loop interference.

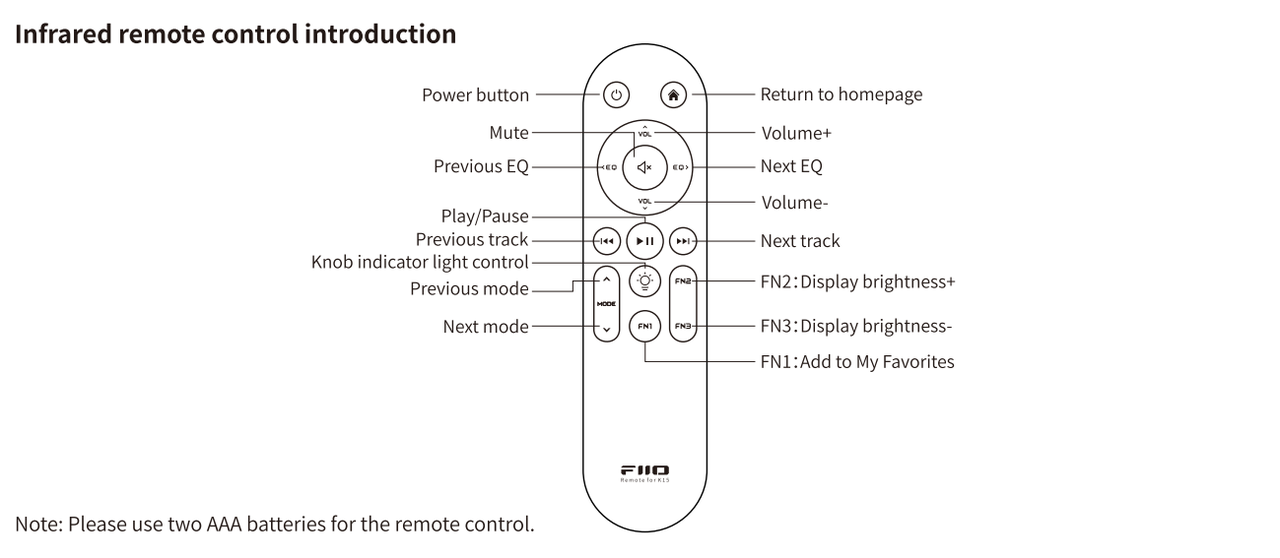

[Remote control instructions]

Difference between powering off via panel knob and entering standby mode via remote control

1.When powering off via the panel knob, there will be boot animation after restart.

2.When entering standby mode via remote control standby, no boot animation when you turn it on again and you can wake up the K15 immediately.
