6. How to Use the Coaxial Output Function on DISC?

1.Go to Settings > Audio Settings > SPDIF and switch it to ON.

2.Connect one end of a coaxial cable to the DISC's 3.5mm audio port, and connect the other end (via an adapter if necessary) to the coaxial input of your external decoding device.

3.Play music on the DISC, and the coaxial signal will be output.

Note:

a. In this mode, the digital signal is decoded by the external DAC, and the DISC functions as a digital transport.

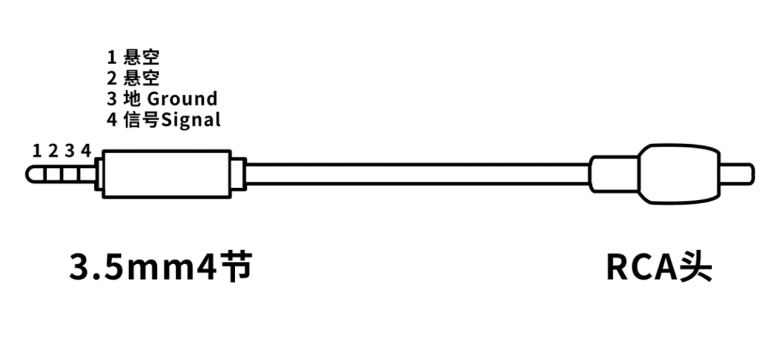

b. The pinout/definition of the coaxial cable is as follows:
